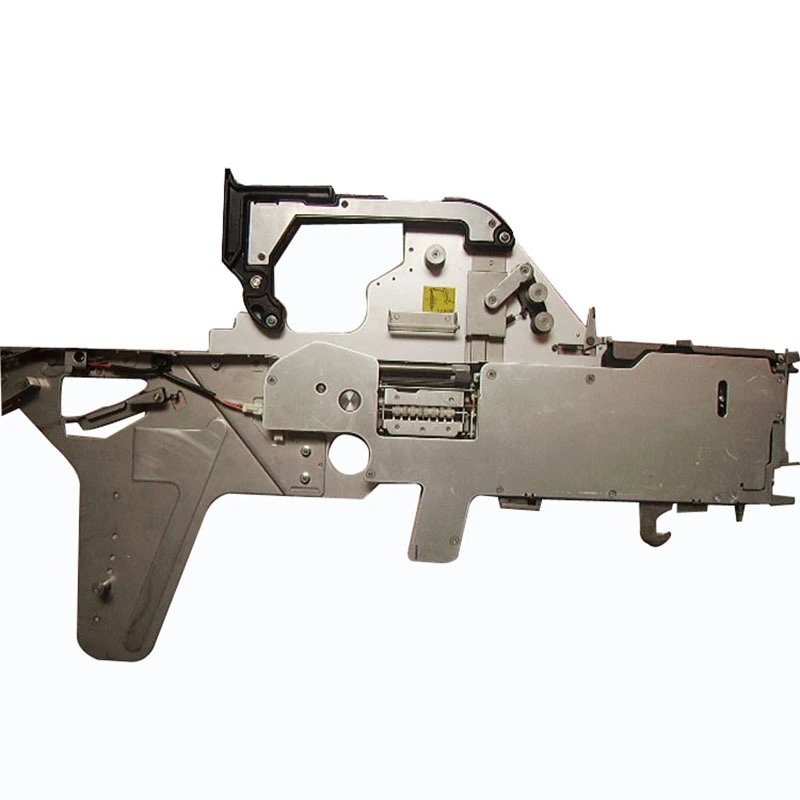

Panasonic BM/MSF8-56MM SMT Feeder: High-Speed Durable Auto Feeder for PCB Assembly
The Panasonic BM/MSF8-56MM SMT Feeder is designed for high-speed PCB assembly, offering reliable and consistent feeding performance. This durable auto feeder ensures smooth operation and enhances production efficiency.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Silakan isi formulir di bawah ini untuk meminta penawaran atau untuk meminta informasi lebih lanjut tentang kami. Harap sedetail mungkin dalam pesan Anda, dan kami akan menghubungi Anda sesegera mungkin dengan respons. Kami siap untuk mulai mengerjakan proyek baru Anda, hubungi kami sekarang untuk memulai.
产品介绍
The Panasonic BM/MSF8-56MM Electric Feeder is an automated feeding solution specifically designed for high-precision SMT (Surface Mount Technology) production lines. Utilizing Panasonic's leading mechatronics technology, it ensures stable and efficient component conveying, and is suitable for precision PCB assembly scenarios such as smartphones, automotive electronics, medical devices, and so on.
.
产品展示
BM电动飞达 (1)
BM MSF (1)
0 (18)
0 (19)
微信图片_20241224214458
微信图片_20241224214449
微信图片_20241224214454
微信图片_20241224214413
微信图片_20241224214540
微信图片_20241224214536
微信图片_20241224214532
微信图片_20241224214514
微信图片_20241224214510
微信图片_20241224214506
微信图片_20250410161817
产品优势
Ultra-high-speed Feeding The feeding speed can reach up to 800-1200 CPH (Components Per Hour), and it is compatible with high-speed chip mounters (such as Panasonic NPM and CM series), significantly improving the efficiency of the production line. It supports tape reels with a bandwidth of 8-56mm and is compatible with various SMD components such as resistors, capacitors, and ICs.
Precise and Stable Feeding Equipped with a closed-loop servo control system, the positioning accuracy is ±0.01mm, which avoids component rejection or misalignment and reduces the rejection rate. With an anti-static design (ESD Protection), it ensures the safety of sensitive components.
Industrial-grade Durability The body adopts an aviation-grade aluminum alloy frame, which is impact-resistant and wear-resistant, and can adapt to a 24/7 continuous operation environment. The lifespan of the core components exceeds 500,000 hours in terms of MTBF (Mean Time Between Failures), reducing the maintenance cost by 30%.
Intelligent Compatibility It supports the SMEMA communication protocol and can be seamlessly integrated with mainstream chip mounters and production line control systems. With a quick material replacement design, the tape reel can be switched within 5 seconds, reducing the downtime.
应用场景
消费电子产品
智能手机主板、TWS耳机电路板、智能手表模块
汽车电子
ECU控制板、车载传感器、新能源汽车充电模块
LED显示屏
Mini LED背光模组、户外显示屏单元
医疗电子
医疗成像设备、植入式传感器的 PCB
FAQ
1
SMT Feeder 的典型使用寿命是多长？如何延长其使用寿命？
标准寿命：工业级SMT Feeder的平均寿命为300万至500万次。 例如，雅马哈CL系列的循环次数可达800万次。
2
如何修复 SMT Feeder 和贴片机之间的通信错误？
确认Feeder接口的PIN针没有弯曲或氧化。 检查Feeder固件版本是否支持该贴片机型号。 重新启动贴片机控制单元，重新加载Feeder的参数配置文件。
3
第三方SMT供料器的性能能否与OEM媲美？
第三方Feeder在短期成本方面有优势，但存在明显差异。 对于高精度、大批量的生产，最好选择原厂供料器。 对于试生产或者复杂度较低的场景，可以尝试优质的第三方品牌。
4
如何快速更换进料齿轮等磨损部件？
切断电源并取下胶带。
使用3mm六角扳手拆下齿轮盖板（注意弹簧张力）。
取出旧齿轮组，并与新齿轮的齿距一致性进行比较。
涂上导热硅脂，然后安装新的齿轮。
使用校准夹具测试送料张力（目标值：2.5N±0.3N）。
5
您能定制非标准胶带宽度的 SMT 供料器吗？
YES
