Used Yamaha YS100 SMT Pick and Place Machine - High-Speed Chip Mounter for PCB Assembly 1

Used Yamaha YS100 SMT Pick and Place Machine - High-Speed Chip Mounter for PCB Assembly 2

Used Yamaha YS100 SMT Pick and Place Machine - High-Speed Chip Mounter for PCB Assembly 3

Used Yamaha YS100 SMT Pick and Place Machine - High-Speed Chip Mounter for PCB Assembly 4

Used Yamaha YS100 SMT Pick and Place Machine - High-Speed Chip Mounter for PCB Assembly 5

Used Yamaha YS100 SMT Pick and Place Machine - High-Speed Chip Mounter for PCB Assembly

The used Yamaha YS100 SMT Pick and Place Machine offers high-speed chip mounting capabilities for efficient PCB assembly. This machine provides reliable performance and precision placement of electronic components on printed circuit boards.

consulta

Escribe una reseña

Produkteinführung

The Yamaha YS100 is a compact SMT (Surface Mount Technology) chip mounter launched by Yamaha Motor. It is an entry-level/mid-range model in its series of high-performance mounting equipment, specifically designed to meet the electronic production requirements of small to medium batches and a wide variety of product types.

Produktpräsentation

YS100 (4)

YS100 (3)

YS100 (2)

Produktvorteile

Used Yamaha YS100 SMT Pick and Place Machine - High-Speed Chip Mounter for PCB Assembly 11

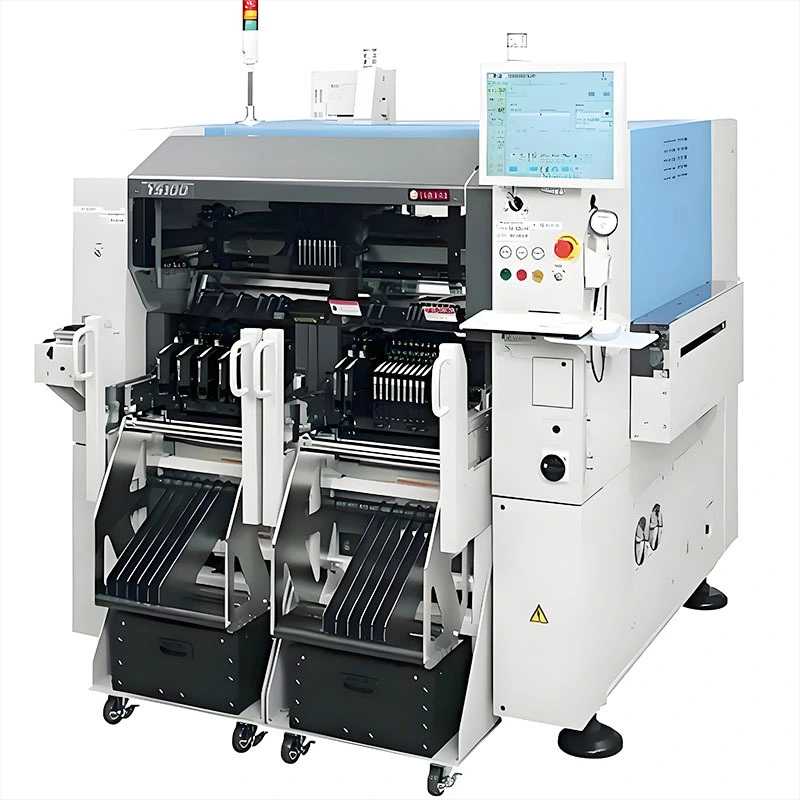

Yamaha Chip Mounter YS100: It has a high-speed mounting capability of 25,000 CPH (equivalent to 0.14 seconds per CHIP: under optimal conditions). With excellent overall mounting accuracy of ±50μm (for CHIP) and ±30μm (for QFP), it can handle a wide range of components, from as small as 0402 CHIP to components with a size of □45mm and long connectors. It can handle components with a height of up to 15mm. It is applicable to L-sized substrates (L510×W460mm). A built-in tape cutter for the main body is available as an optional accessory.

Technische Spezifikationen

Artikel	Parameter
Platzierungsgeschwindigkeit	25,000CPH
Platzierungsgenauigkeit	μ+3σ）±0.05mm/CHIP、±0.05mm/QFP
Komponentenbereich	0402 CHIP to □45mm
Substratgröße	50mm × 50mm - 510mm × 460mm
Zuführkapazität	Up to 126 (8mm tape feeders)
Stromversorgungsanforderungen	AC 200/208/220/240/380/400/416 V ±10％ 50/60 Hz

Anwendungsszenario

Unterhaltungselektronik

Smartphone-Motherboards, TWS-Kopfhörer-Leiterplatten, Smartwatch-Module

Automobilelektronik

ECU-Steuerplatine, fahrzeugmontierte Sensoren, Lademodule für Fahrzeuge mit neuer Energie

LED-Anzeige

Mini-LED-Hintergrundbeleuchtungsmodul, Anzeigeeinheit für den Außenbereich

Medizinelektronik

Leiterplatten für medizinische Bildgebungsgeräte, implantierbare Sensoren

FAQ

1.What is a pick and place machine used for?

A SMT Pick and Place Machine is used to automatically and precisely mount electronic components (such as resistors, capacitors, and chips) onto PCB circuit boards. It is the core equipment in an SMT (Surface Mount Technology) production line.

What are the main brands of pick and place machines?

A: The mainstream brands include: High - end: Yamaha, Panasonic, FUJI Cost - effective: JUKI, Samsung Pick and Place Machine Domestic (Chinese): Dongguan GKG, Shenzhen Luyuan

How is the mounting speed of a pick and place machine measured?

It is measured in CPH (Components Per Hour). For example: Low - speed machines: 3,000 - 10,000 CPH (for small - batch production) Medium - speed machines: 10,000 - 30,000 CPH (such as the Yamaha YG100) High - speed machines: 30,000 - 60,000+ CPH (such as the YG200L) High-resolution CL cameras 0.3mm fine-pitch nozzles Note: Older units may need upgrades.

What is the smallest component a pick and place machine can mount?

It depends on the precision (unit: mm/μm): Regular precision: ±0.05mm (for mounting 0402 and 0603 components) High precision: ±0.025mm (for mounting 01005 and 0201 miniature components) , 500 ) 🔧 � � � � � � � � � � � � � � � � � � � ( � � � � : 1,500)🔧Feederrecalibration(cost:200/unit) 🔧 Lubricate linear guides (DIY possible)

Is it worth buying a second - hand pick and place machine?

It is suitable for enterprises with limited budgets, but the following points should be noted: Advantages: Low price (30% - 50% of a new machine) and quick return on investment. Risks: Need to check for wear (rails, mounting heads), software compatibility, and after - sales service. YSU (Yamaha Software Unit) version Feeder/head calibration licenses Tip: Request a demo run before payment.
