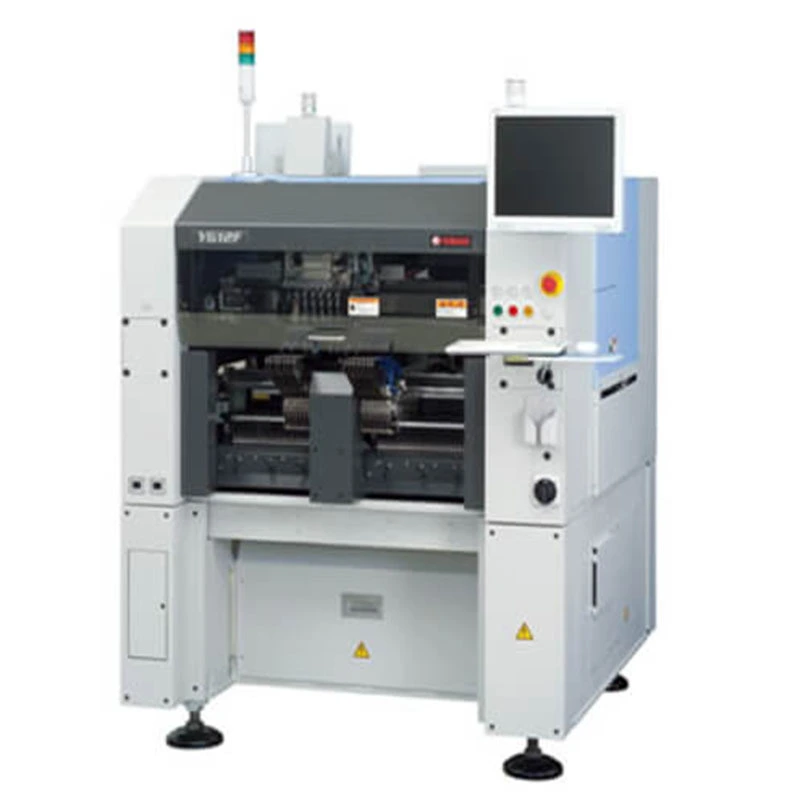

Used YG12F Yamaha Pick-and-Place Machine - High-Speed SMT for PCB Assembly | Best Price & Performance 1

Used YG12F Yamaha Pick-and-Place Machine - High-Speed SMT for PCB Assembly | Best Price & Performance 2

Used YG12F Yamaha Pick-and-Place Machine - High-Speed SMT for PCB Assembly | Best Price & Performance 3

Used YG12F Yamaha Pick-and-Place Machine - High-Speed SMT for PCB Assembly | Best Price & Performance 4

Used YG12F Yamaha Pick-and-Place Machine - High-Speed SMT for PCB Assembly | Best Price & Performance 5

Used YG12F Yamaha Pick-and-Place Machine - High-Speed SMT for PCB Assembly | Best Price & Performance 6

Used YG12F Yamaha Pick-and-Place Machine - High-Speed SMT for PCB Assembly | Best Price & Performance

The used YG12F Yamaha Pick-and-Place Machine offers high-speed SMT capabilities for efficient PCB assembly. With its best price and performance combination, this machine is a reliable choice for electronics manufacturers looking to enhance their production processes.

Inquiry

Write a Review

Product Introduction

Core Features
✅ Ultra-high-speed Placement
Theoretical speed: 42,000 CPH (Components Per Hour)
Suitable for large-batch PCB production, with an efficiency improvement of over 30%
✅ High-precision Positioning
Repeatability accuracy: ±25μm (0.025mm)
Supports 01005 miniature components up to 30mm large components
✅ Flexible Feeding System
Compatible with 8mm/12mm/16mm reels and tube/bulk materials
Optional dual feeding stations to reduce material change downtime
✅ Intelligent Vision Alignment
High-resolution CMOS camera + laser recognition
Automatically corrects PCB warping and component offset

：配备双进料站，减少换料停机时间

除了贴片机，你还能翻译其他设备的说明书吗？

你是如何学习翻译的？

Product Display

微信图片_20240123214009

微信图片_20240123214014

微信图片_20240123214004

Product Advantages

Used YG12F Yamaha Pick-and-Place Machine - High-Speed SMT for PCB Assembly | Best Price & Performance 12

Ultra-fast placement, leading the industry in production capacity.

Micron-level precision, stable and reliable.

Intelligent production, reducing labor costs.

Flexibly adapts to complex production requirements.

Technical Specifications

Item	Parameter
Placement Speed	42,000 CPH (0.06 seconds per component)
Placement Accuracy	±25μm @ 3σ
Component Range	01005 to 30mm (L) × 15mm (W)
Substrate Size	Maximum 510mm × 460mm
Feeder Capacity	Up to 120 (8mm tape feeders)
Power Supply Requirement	Three-phase AC 200V, 3.5kVA

Application Scenario

Consumer electronics

Smartphone motherboards, TWS earphone circuit boards, smartwatch modules

Automotive electronics

ECU control board, vehicle-mounted sensors, charging modules for new energy vehicles

LED display

Mini LED backlight module, outdoor display screen unit

Medical electronics

PCBs for medical imaging equipment, implantable sensors

FAQ

1. What’s the typical condition of a used YG12F?

Well-maintained units have <15,000 operating hours, ±30μm accuracy, and include service records. Check for nozzle wear, feeder reliability, and vision calibration.

How much does a used YG12F cost?

Prices range 25 , 000 – 25,000–45,000 depending on: ✅ Year (2015+ models cost more) ✅ Included feeders (8mm/12mm) ✅ Upgrades (e.g., 3D vision, dual-lane)

Can it handle modern components like 01005 or QFN?

Yes, if equipped with: High-resolution CL cameras 0.3mm fine-pitch nozzles Note: Older units may need upgrades.

What maintenance is required after purchase?

Critical checks: 🔧 Belt/encoder replacement (~ 1 , 500 ) 🔧 � � � � � � � � � � � � � � � � � � � ( � � � � : 1,500)🔧Feederrecalibration(cost:200/unit) 🔧 Lubricate linear guides (DIY possible)

Is software/license transfer included?

Usually yes, but confirm: YSU (Yamaha Software Unit) version Feeder/head calibration licenses Tip: Request a demo run before payment.

What kind of certificate you have ?

We have ISO9001, ISO14001,PED,SGS.
