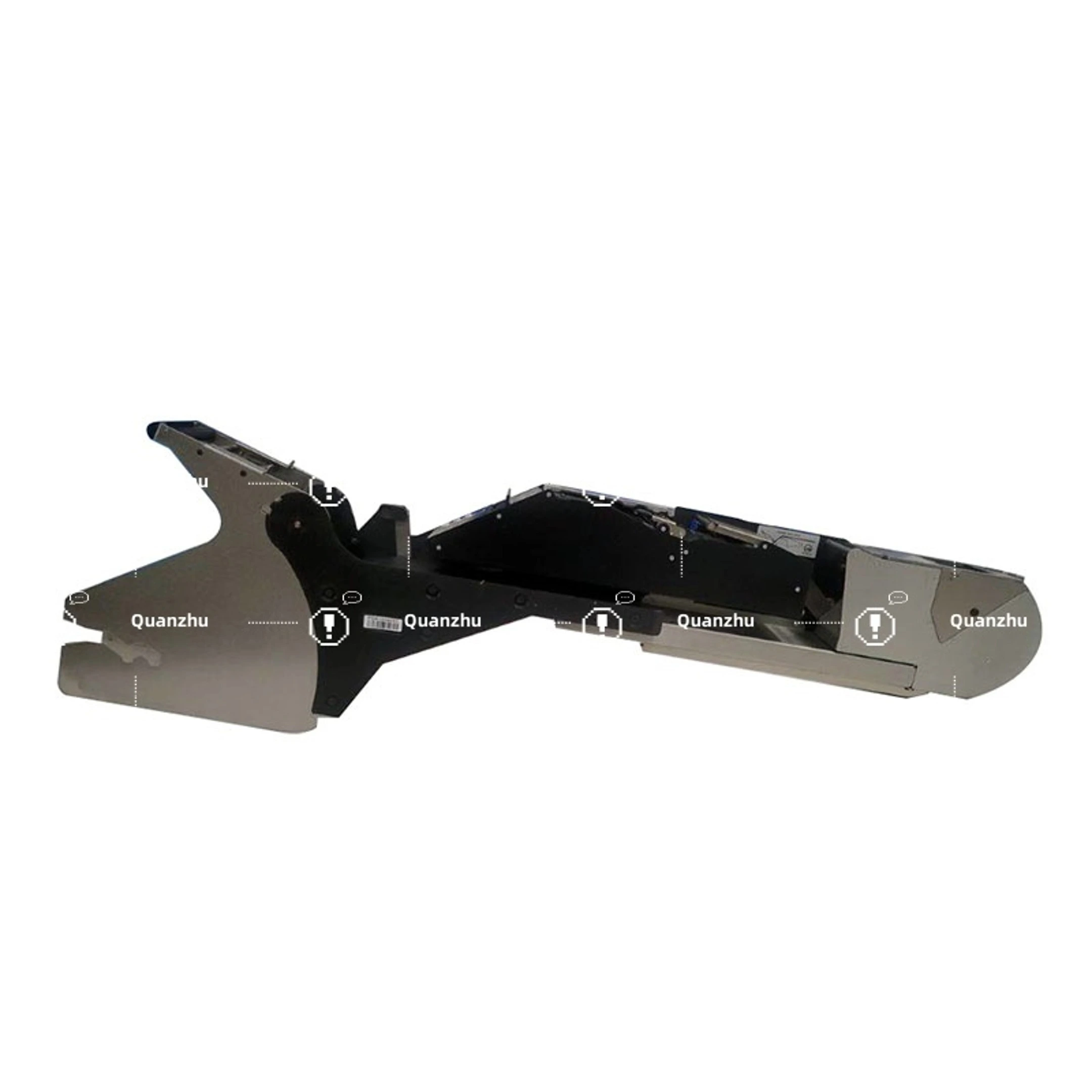

SMT Universal Feeder 72mm | Part Numbers 51458901 / 51458902 / 51458904 | Heavy-Duty Wide Tape Feeders for Oversized SMDs

Reliable 72mm feeders for Universal SMT – Accurate feeding for large and heavy electronic components

Optimized for 72mm carrier tape, these feeders are ideal for feeding large shielding frames, transformers, power modules, and custom electronic components that require wide-tape support. Their durable mechanical design ensures precise tape advancement, reduces misfeeds, and maintains exceptional placement accuracy under demanding production conditions.

51458901 – Standard 72mm Feeder: Suitable for general oversized component handling
51458902 – 72mm Feeder with Enhanced Features: May include sensor or quick-load support
51458904 – 72mm High-Performance Feeder: Optimized for maximum stability and line automation

All models are fully compatible with Universal SMT platforms, enabling manufacturers to maintain throughput and production stability when working with challenging large-format SMDs.

Inquiry

Write a Review

Product Introduction

51458901 – Standard 72mm Feeder: Suitable for general oversized component handling
51458902 – 72mm Feeder with Enhanced Features: May include sensor or quick-load support
51458904 – 72mm High-Performance Feeder: Optimized for maximum stability and line automation

All models are fully compatible with Universal SMT platforms, enabling manufacturers to maintain throughput and production stability when working with challenging large-format SMDs.

Product Display

0 (164)

1 (229)

2 (4) (3)

微信图片_20230812154545

微信图片_20230812154542

微信图片_20230812154530 (2)

微信图片_20230812154526 (2)

微信图片_20230812154455 (2)

微信图片_20230812154451 (2)

Product Advantages

SMT Universal Feeder 72mm | Part Numbers 51458901 / 51458902 / 51458904 | Heavy-Duty Wide Tape Feeders for Oversized SMDs 17

Smooth and Reliable Component Feeding Ensures stable delivery of tape-mounted components, reducing misfeeds and improving pick-and-place accuracy.

High-Speed Compatibility Optimized for Siemens ASM high-speed SMT machines, supporting continuous operation in demanding production lines.

Durable and Easy to Maintain Built with high-quality materials for long service life, and designed for fast loading and simple maintenance.

Application Scenario

Consumer electronics

Smartphone motherboards, TWS earphone circuit boards, smartwatch modules

Automotive electronics

ECU control board, vehicle-mounted sensors, charging modules for new energy vehicles

LED display

Mini LED backlight module, outdoor display screen unit

Medical electronics

PCBs for medical imaging equipment, implantable sensors

FAQ

What is the typical lifespan of an SMT Feeder? How to extend its service life?

Standard lifespan: The average lifespan of an industrial-grade SMT Feeder is 3 to 5 million cycles. For example, the Yamaha CL series can reach up to 8 million cycles.

How to fix communication errors between SMT Feeder and pick-and-place machine?

Confirm that the PIN pins of the Feeder interface are not bent or oxidized. Check whether the Feeder firmware version supports the model of the chip mounter. Restart the control unit of the chip mounter and reload the parameter configuration file of the Feeder.

Can third-party SMT Feeders match OEM performance?

Third-party Feeders have an advantage in terms of short-term costs, but there are significant differences. For high-precision and large-batch production, it is preferable to choose the original factory feeders. For trial production or scenarios with low complexity, it is possible to try high-quality third-party brands.

How to quickly replace worn parts like feeder gears?

Cut off the power supply and remove the tape. Use a 3mm hexagonal wrench to remove the gear cover plate (pay attention to the spring tension). Take out the old gear set and compare the pitch consistency with that of the new gear. Apply thermal conductive silicone grease and then install the new gear. Use a calibration jig to test the feeding tension (target value: 2.5N±0.3N).

Can you customize SMT Feeders for non-standard tape widths?

YES
