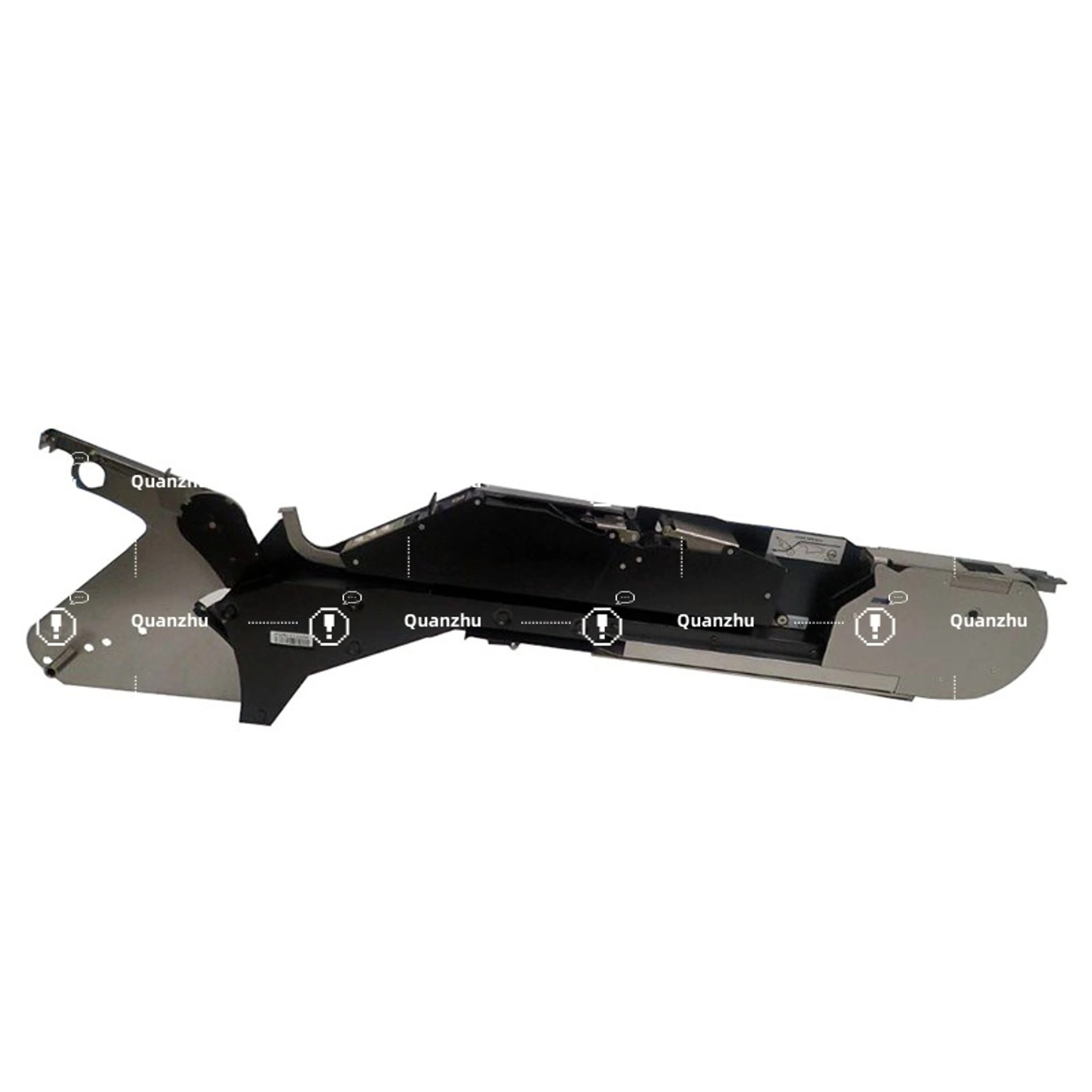

SMT Universal Feeder 44mm | Part Numbers 51458702 / 51458704 | Extra-Wide Feeders for Heavy-Duty SMD Components 1

SMT Universal Feeder 44mm | Part Numbers 51458702 / 51458704 | Extra-Wide Feeders for Heavy-Duty SMD Components 2

SMT Universal Feeder 44mm | Part Numbers 51458702 / 51458704 | Extra-Wide Feeders for Heavy-Duty SMD Components 3

SMT Universal Feeder 44mm | Part Numbers 51458702 / 51458704 | Extra-Wide Feeders for Heavy-Duty SMD Components 4

SMT Universal Feeder 44mm | Part Numbers 51458702 / 51458704 | Extra-Wide Feeders for Heavy-Duty SMD Components 5

SMT Universal Feeder 44mm | Part Numbers 51458702 / 51458704 | Extra-Wide Feeders for Heavy-Duty SMD Components

High-performance 44mm feeders for Universal SMT – Ideal for large and bulky component feeding

These 44mm feeders are ideal for large-format components such as power modules, shielding cases, large ICs, and connectors. With wide-tape support and a rugged mechanical structure, they ensure smooth feeding, reduced misfeeds, and precise placement throughout extended production runs.

51458702 – Standard 44mm Feeder: Designed for reliable performance in general wide-tape applications
51458704 – Enhanced 44mm Feeder: May include additional features like quick-load or splice detection for automation and production tracking

Compatible with Universal Instruments SMT systems, both models are optimized for consistent operation in demanding manufacturing environments, supporting high throughput and minimal downtime.

Inquiry

Write a Review

Product Introduction

51458702 – Standard 44mm Feeder: Designed for reliable performance in general wide-tape applications
51458704 – Enhanced 44mm Feeder: May include additional features like quick-load or splice detection for automation and production tracking

Compatible with Universal Instruments SMT systems, both models are optimized for consistent operation in demanding manufacturing environments, supporting high throughput and minimal downtime.

tk1002_universal_44mm_hp_gold_spliceable_tape_feed

Product Display

1 (227)

2 (93)

tk1002_universal_44mm_hp_gold_spliceable_tape_feed

微信图片_20230812154545

微信图片_20230812154542

微信图片_20230812154530 (2)

微信图片_20230812154526 (2)

微信图片_20230812154455 (2)

微信图片_20230812154451 (2)

Product Advantages

SMT Universal Feeder 44mm | Part Numbers 51458702 / 51458704 | Extra-Wide Feeders for Heavy-Duty SMD Components 17

Smooth and Reliable Component Feeding Ensures stable delivery of tape-mounted components, reducing misfeeds and improving pick-and-place accuracy.

High-Speed Compatibility Optimized for Siemens ASM high-speed SMT machines, supporting continuous operation in demanding production lines.

Durable and Easy to Maintain Built with high-quality materials for long service life, and designed for fast loading and simple maintenance.

Application Scenario

Consumer electronics

Smartphone motherboards, TWS earphone circuit boards, smartwatch modules

Automotive electronics

ECU control board, vehicle-mounted sensors, charging modules for new energy vehicles

LED display

Mini LED backlight module, outdoor display screen unit

Medical electronics

PCBs for medical imaging equipment, implantable sensors

FAQ

What is the typical lifespan of an SMT Feeder? How to extend its service life?

Standard lifespan: The average lifespan of an industrial-grade SMT Feeder is 3 to 5 million cycles. For example, the Yamaha CL series can reach up to 8 million cycles.

How to fix communication errors between SMT Feeder and pick-and-place machine?

Confirm that the PIN pins of the Feeder interface are not bent or oxidized. Check whether the Feeder firmware version supports the model of the chip mounter. Restart the control unit of the chip mounter and reload the parameter configuration file of the Feeder.

Can third-party SMT Feeders match OEM performance?

Third-party Feeders have an advantage in terms of short-term costs, but there are significant differences. For high-precision and large-batch production, it is preferable to choose the original factory feeders. For trial production or scenarios with low complexity, it is possible to try high-quality third-party brands.

How to quickly replace worn parts like feeder gears?

Cut off the power supply and remove the tape. Use a 3mm hexagonal wrench to remove the gear cover plate (pay attention to the spring tension). Take out the old gear set and compare the pitch consistency with that of the new gear. Apply thermal conductive silicone grease and then install the new gear. Use a calibration jig to test the feeding tension (target value: 2.5N±0.3N).

Can you customize SMT Feeders for non-standard tape widths?

YES
