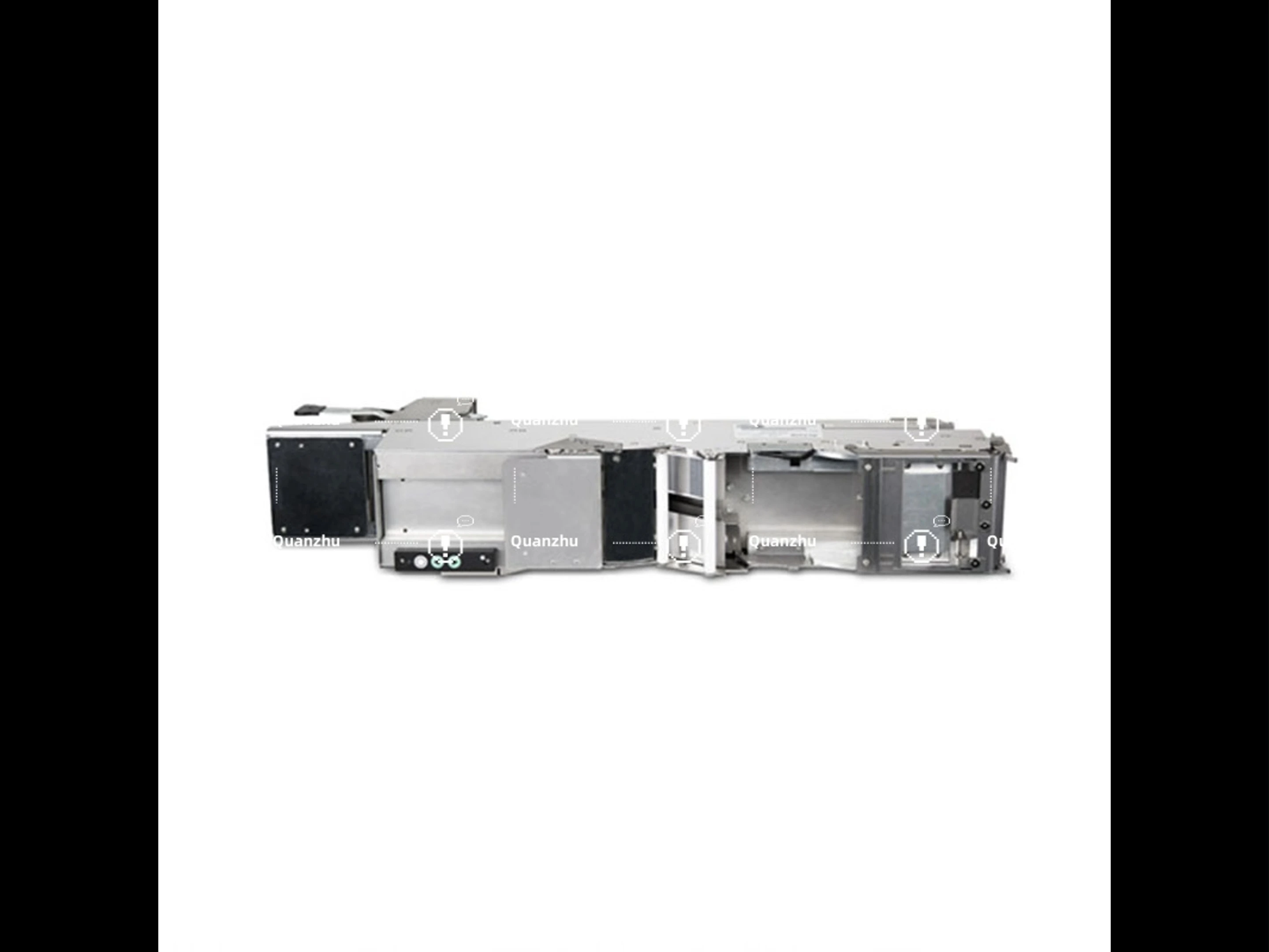

SMT PANASONIC FEEDER 104MM KXFW1L11A00 – Ultra-Wide Tape Feeder for Large Components 1

SMT PANASONIC FEEDER 104MM KXFW1L11A00 – Ultra-Wide Tape Feeder for Large Components 2

SMT PANASONIC FEEDER 104MM KXFW1L11A00 – Ultra-Wide Tape Feeder for Large Components 3

SMT PANASONIC FEEDER 104MM KXFW1L11A00 – Ultra-Wide Tape Feeder for Large Components

PANASONIC 104mm feeder delivers stable, high-capacity feeding for oversized SMT parts.

Designed to support large-format components such as power modules, aluminum substrates, and large ICs, this 104mm feeder is compatible with Panasonic NPM and CM series machines. With reinforced construction and a precision feed mechanism, it ensures consistent performance under demanding SMT production conditions. Widely used in automotive electronics, industrial equipment, and LED manufacturing.

Part Number: KXFW1L11A00
Tape Width: 104mm
Compatible Machines: Panasonic NPM / CM Series
Component Types: Oversized SMDs, ICs, power modules, aluminum substrates
Key Features:
- Ultra-wide support for non-standard packages
- Robust and stable mechanical structure
- Accurate feeding with minimal deviation
- Fast changeover for increased production efficiency
- Ideal for high-reliability applications

Inquiry

Write a Review

Product Introduction

Part Number: KXFW1L11A00
Tape Width: 104mm
Compatible Machines: Panasonic NPM / CM Series
Component Types: Oversized SMDs, ICs, power modules, aluminum substrates
Key Features:
- Ultra-wide support for non-standard packages
- Robust and stable mechanical structure
- Accurate feeding with minimal deviation
- Fast changeover for increased production efficiency
- Ideal for high-reliability applications

Product Display

1 (2) (14)

1 (1) (19)

88 (5)

微信图片_20250611183037

微信图片_20250611183033

微信图片_20250611183009

微信图片_20250602141849

微信图片_20250530094504

微信图片_20250524144724

Product Advantages

SMT PANASONIC FEEDER 104MM KXFW1L11A00 – Ultra-Wide Tape Feeder for Large Components 15

Accurate and Stable Feeding: Ensures precise component delivery to the pick-up point, minimizing misfeeds and errors.

Durable Construction: Built with high-strength materials for long service life and reliable performance in continuous production.

Easy Maintenance: Quick tape loading and simplified upkeep reduce downtime and boost line efficiency.

Application Scenario

Consumer electronics

Smartphone motherboards, TWS earphone circuit boards, smartwatch modules

Automotive electronics

ECU control board, vehicle-mounted sensors, charging modules for new energy vehicles

LED display

Mini LED backlight module, outdoor display screen unit

Medical electronics

PCBs for medical imaging equipment, implantable sensors

FAQ

What is the typical lifespan of an SMT Feeder? How to extend its service life?

Standard lifespan: The average lifespan of an industrial-grade SMT Feeder is 3 to 5 million cycles. For example, the Yamaha CL series can reach up to 8 million cycles.

How to fix communication errors between SMT Feeder and pick-and-place machine?

Confirm that the PIN pins of the Feeder interface are not bent or oxidized. Check whether the Feeder firmware version supports the model of the chip mounter. Restart the control unit of the chip mounter and reload the parameter configuration file of the Feeder.

Can third-party SMT Feeders match OEM performance?

Third-party Feeders have an advantage in terms of short-term costs, but there are significant differences. For high-precision and large-batch production, it is preferable to choose the original factory feeders. For trial production or scenarios with low complexity, it is possible to try high-quality third-party brands.

How to quickly replace worn parts like feeder gears?

Cut off the power supply and remove the tape. Use a 3mm hexagonal wrench to remove the gear cover plate (pay attention to the spring tension). Take out the old gear set and compare the pitch consistency with that of the new gear. Apply thermal conductive silicone grease and then install the new gear. Use a calibration jig to test the feeding tension (target value: 2.5N±0.3N).

Can you customize SMT Feeders for non-standard tape widths?

YES
