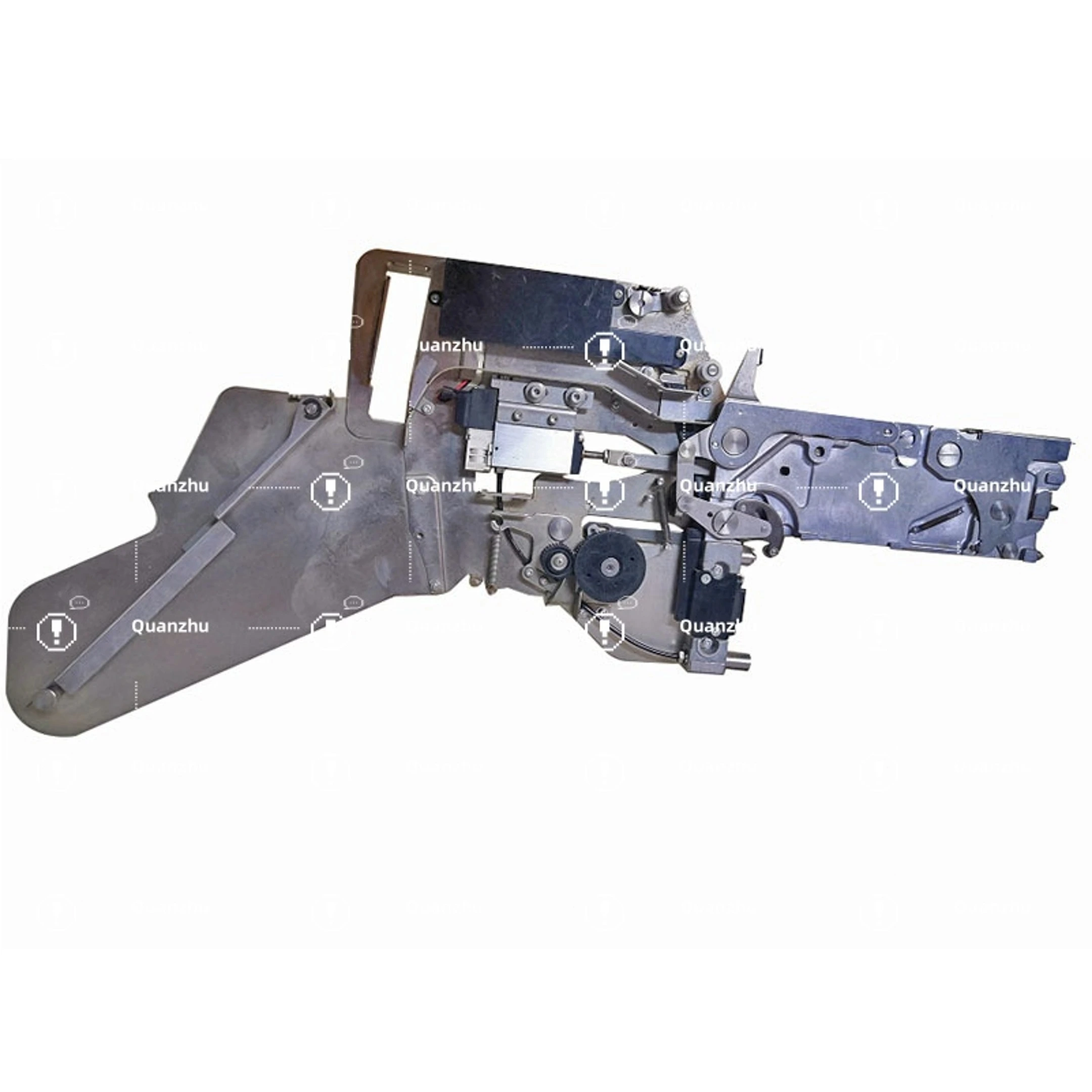

SMT I-PULSE FEEDER F1-12MM/16MM – Versatile Tape Feeder for Medium-Size SMT Components

I-PULSE F1 series 12mm/16mm feeders ensure smooth and accurate feeding of medium-sized components.

This F1 series feeder features a robust and stable feeding mechanism that delivers components precisely and efficiently, even at high speeds. The modular design allows for quick setup, easy maintenance, and reliable performance, making it a great choice for electronics assembly lines involving larger SMDs.

Model: I-PULSE F1 Series
Tape Widths Supported: 12mm / 16mm
Compatible Machines: I-PULSE M1 / M2 / M4 / M6 / M8 series
Suitable Components: SOP, QFP, connectors, power devices, mid-size ICs
Key Features:
- Compatible with medium-width component tapes
- Stable and accurate feeding performance
- Durable structure for continuous operation
- Quick to install, easy to maintain

Inquiry

Write a Review

Product Introduction

Model: I-PULSE F1 Series
Tape Widths Supported: 12mm / 16mm
Compatible Machines: I-PULSE M1 / M2 / M4 / M6 / M8 series
Suitable Components: SOP, QFP, connectors, power devices, mid-size ICs
Key Features:
- Compatible with medium-width component tapes
- Stable and accurate feeding performance
- Durable structure for continuous operation
- Quick to install, easy to maintain

Product Display

0 (170)

1 (241)

3 (78)

1 (240)

1_1

2 (103)

3 (77)

3_1

5 (20)

Product Advantages

SMT I-PULSE FEEDER F1-12MM/16MM – Versatile Tape Feeder for Medium-Size SMT Components 17

Accurate and Stable Feeding: Ensures precise component delivery to the pick-up point, minimizing misfeeds and errors.

Durable Construction: Built with high-strength materials for long service life and reliable performance in continuous production.

Easy Maintenance: Quick tape loading and simplified upkeep reduce downtime and boost line efficiency.

Application Scenario

Consumer electronics

Smartphone motherboards, TWS earphone circuit boards, smartwatch modules

Automotive electronics

ECU control board, vehicle-mounted sensors, charging modules for new energy vehicles

LED display

Mini LED backlight module, outdoor display screen unit

Medical electronics

PCBs for medical imaging equipment, implantable sensors

FAQ

What is the typical lifespan of an SMT Feeder? How to extend its service life?

Standard lifespan: The average lifespan of an industrial-grade SMT Feeder is 3 to 5 million cycles. For example, the Yamaha CL series can reach up to 8 million cycles.

How to fix communication errors between SMT Feeder and pick-and-place machine?

Confirm that the PIN pins of the Feeder interface are not bent or oxidized. Check whether the Feeder firmware version supports the model of the chip mounter. Restart the control unit of the chip mounter and reload the parameter configuration file of the Feeder.

Can third-party SMT Feeders match OEM performance?

Third-party Feeders have an advantage in terms of short-term costs, but there are significant differences. For high-precision and large-batch production, it is preferable to choose the original factory feeders. For trial production or scenarios with low complexity, it is possible to try high-quality third-party brands.

How to quickly replace worn parts like feeder gears?

Cut off the power supply and remove the tape. Use a 3mm hexagonal wrench to remove the gear cover plate (pay attention to the spring tension). Take out the old gear set and compare the pitch consistency with that of the new gear. Apply thermal conductive silicone grease and then install the new gear. Use a calibration jig to test the feeding tension (target value: 2.5N±0.3N).

Can you customize SMT Feeders for non-standard tape widths?

YES
