Yamaha SS/SZ Electric SMT Feeders 8-88mm | for Pick and Place Machines | High-Speed <000000> OEM Certified | Global Shipping
The Yamaha SS/SZ Electric SMT Feeders are designed for use with pick and place machines in electronic manufacturing. With a feed range of 8-88mm, these feeders are suitable for a variety of component sizes. They are high-speed and OEM certified, ensuring reliable performance, and are available for global shipping to support your production needs.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Por favor, preencha o formulário abaixo para solicitar uma cotação ou solicitar mais informações sobre nós. Por favor, seja o mais detalhado possível em sua mensagem, e entraremos em contato o mais breve possível com uma resposta. Estamos prontos para começar a trabalhar em seu novo projeto, entre em contato agora para começar.
Product Introduction

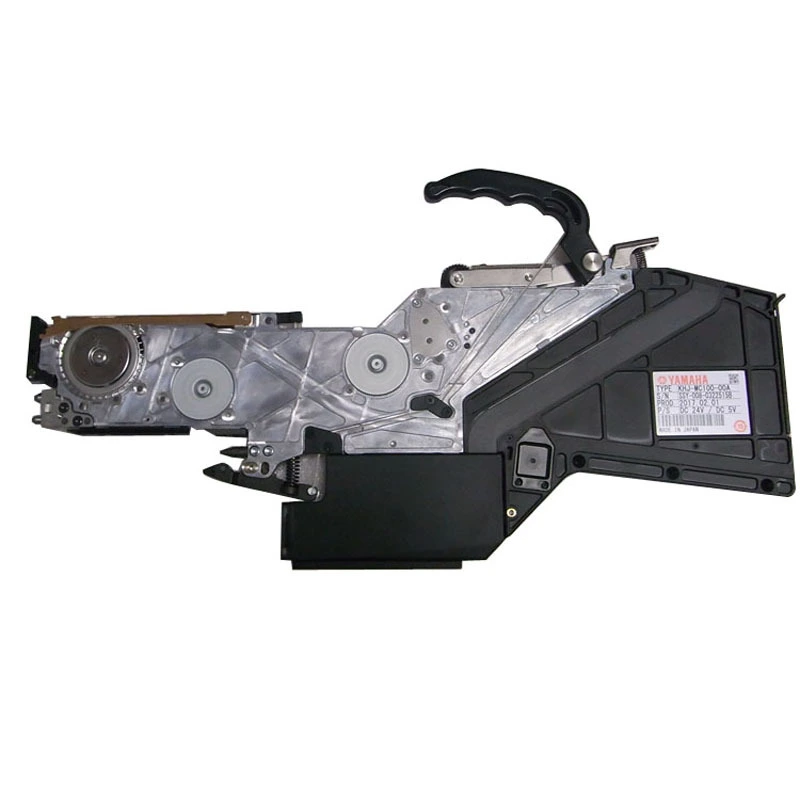

The Yamaha SS/SZ series of electric feeders is specifically designed for high-precision and high-mix PCB assembly scenarios. It covers a tape width range from 8mm to 88mm and is a perfect fit for Yamaha YSM/XG series chip mounters. Equipped with an intelligent self-calibration system and military-grade servo motors, it achieves a feeding accuracy of ±0.005mm and an ultra-high feeding speed of 1000mm/s, significantly improving the placement yield and production capacity in high-end manufacturing fields such as 5G communication, automotive electronics, and medical devices.
.
Affichage des produits
微信图片_20250303101209
微信图片_20241228162808
微信图片_20250120104408
微信图片_20250410161702
微信图片_20250410161642
微信图片_20250120104350
微信图片_20241228162701
KW1-M1300-110 CL8-2(13)
CL8-4 (9)
CL12MM (2)
RIMG0144
CL24mm (20)
GL32MM (3)
微信图片_20241022172621
未标题-1
CL72 (11)
CL0201 (1)
RIMG1408
0 (8)
1 (3) (4)
未标题-1 (2)
Avantages du produit
Ultra-high Speed Performance The feeding speed can reach up to 800mm/s, which is compatible with the ultra-fast mode of Yamaha chip mounters, increasing the production capacity by over 30%. The intelligent tension adjustment technology ensures that miniature components such as ICs, resistors, and capacitors are fed without deviation.
Extreme Durability The main body is made of aviation aluminum material, combined with an anti-static ceramic ratchet, boasting a lifespan of over 5 million cycles (twice the industry average). With an IP65 dustproof and splash-proof design, it is suitable for dust-free workshops and high-humidity environments.
Precise Compatibility It natively supports Yamaha series chip mounters, allowing for plug-and-play operation without debugging. The customizable tape guides can accommodate components that conform to JEDEC standards as well as non - standard and irregularly shaped components.
Cost Optimization Solution With a modular design, key components such as feeding gears and sensors support quick replacement, reducing maintenance costs by 60%. It provides a 1-year warranty and a global 48-hour spare parts response service.
Scénario d'application
Consumer electronics
Smartphone motherboards, TWS earphone circuit boards, smartwatch modules
Automotive electronics
ECU control board, vehicle-mounted sensors, charging modules for new energy vehicles
LED display
Mini LED backlight module, outdoor display screen unit
Medical electronics
PCBs for medical imaging equipment, implantable sensors
FAQ
1
What is the typical lifespan of an SMT Feeder? How to extend its service life?
Standard lifespan: The average lifespan of an industrial-grade SMT Feeder is 3 to 5 million cycles. For example, the Yamaha CL series can reach up to 8 million cycles.
2
How to fix communication errors between SMT Feeder and pick-and-place machine?
Confirm that the PIN pins of the Feeder interface are not bent or oxidized. Check whether the Feeder firmware version supports the model of the chip mounter. Restart the control unit of the chip mounter and reload the parameter configuration file of the Feeder.
3
Can third-party SMT Feeders match OEM performance?
Third-party Feeders have an advantage in terms of short-term costs, but there are significant differences. For high-precision and large-batch production, it is preferable to choose the original factory feeders. For trial production or scenarios with low complexity, it is possible to try high-quality third-party brands.
4
How to quickly replace worn parts like feeder gears?
Cut off the power supply and remove the tape.
Use a 3mm hexagonal wrench to remove the gear cover plate (pay attention to the spring tension).
Take out the old gear set and compare the pitch consistency with that of the new gear.
Apply thermal conductive silicone grease and then install the new gear.
Use a calibration jig to test the feeding tension (target value: 2.5N±0.3N).
5
Can you customize SMT Feeders for non-standard tape widths?
YES
