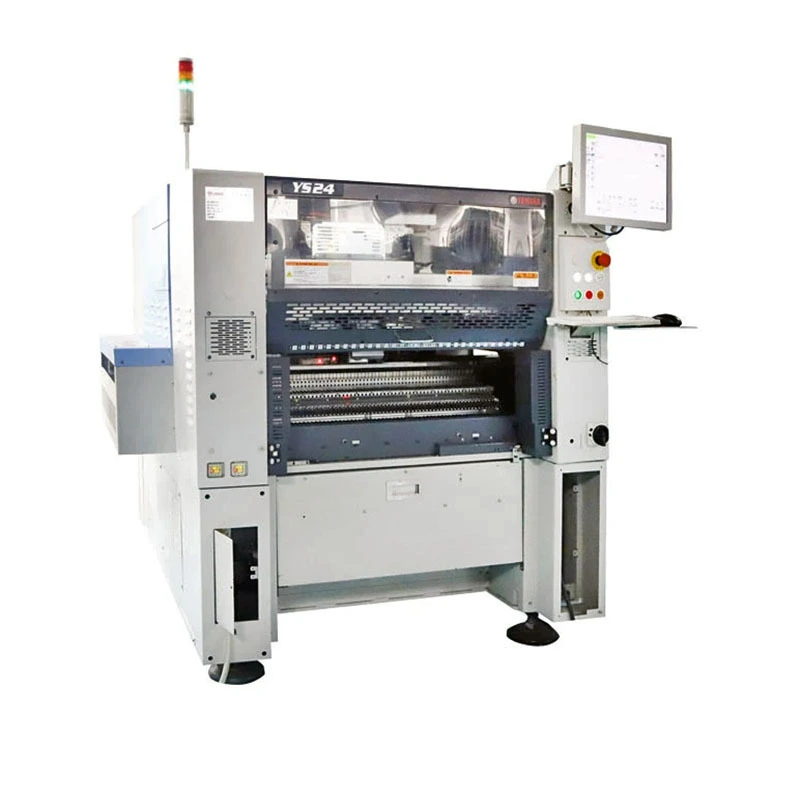

Used Yamaha YS24 SMT Pick and Place Machine - 72,000 CPH High-Speed Chip Shooter for PCB Assembly
The Used Yamaha YS24 SMT Pick and Place Machine is a high-speed chip shooter designed for fast and accurate PCB assembly, with a capacity of 72,000 CPH. This machine offers efficient and reliable performance for high-volume production lines.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Sila isi borang di bawah untuk meminta sebut harga atau untuk meminta lebih banyak maklumat mengenai kami. Sila terperinci yang mungkin dalam mesej anda, dan kami akan kembali kepada anda secepat mungkin dengan respons. Kami bersedia untuk mula bekerja pada projek baru anda, hubungi kami sekarang untuk memulakan.
Produkteinführung
Produktpräsentation
YS24 (3)
YS24 (4)
YS24 (2)
Produktvorteile
Theoretical speed: 72,000 CPH (leading level in the industry) Dual Gantry + four independent mounting heads:
Mounting accuracy: ±15μm (Cpk≥1.0), supporting: 01005 ultra-micro components (one of the smallest packages currently available) BGA/QFN with a pitch of 0.3mm (high-density IC packaging) Long strip connectors, special-shaped components (such as shielding covers, inductors)
Yamaha YSU software: Graphical programming, supporting CAD import, offline optimization, and real-time monitoring.
Technische Spezifikationen
| Artikel | Parameter |
|---|---|
| Platzierungsgeschwindigkeit | 72,000 CPH |
| Platzierungsgenauigkeit |
+/-0.05mm (μ + 3σ), +/-0.03mm (3σ)
|
| Komponentenbereich |
0402 to 32x32mm MAX (Height 6.5mm or less)
|
| Substratgröße |
L50×W50mm～L700×W460mm
|
| Zuführkapazität | Bis zu 120 (8-mm-Bandzuführungen) |
| Stromversorgungsanforderungen | Dreiphasiger Wechselstrom 200 V, 3,5 kVA |
Anwendungsszenario
Unterhaltungselektronik
Smartphone-Motherboards, TWS-Kopfhörer-Leiterplatten, Smartwatch-Module
Automobilelektronik
ECU-Steuerplatine, fahrzeugmontierte Sensoren, Lademodule für Fahrzeuge mit neuer Energie
LED-Anzeige
Mini-LED-Hintergrundbeleuchtungsmodul, Anzeigeeinheit für den Außenbereich
Medizinelektronik
Leiterplatten für medizinische Bildgebungsgeräte, implantierbare Sensoren
FAQ
1
1.What is a pick and place machine used for?
A SMT Pick and Place Machine is used to automatically and precisely mount electronic components (such as resistors, capacitors, and chips) onto PCB circuit boards. It is the core equipment in an SMT (Surface Mount Technology) production line.
2
What are the main brands of pick and place machines?
A: The mainstream brands include:
High - end: Yamaha, Panasonic, FUJI
Cost - effective: JUKI, Samsung Pick and Place Machine
Domestic (Chinese): Dongguan GKG, Shenzhen Luyuan
3
How is the mounting speed of a pick and place machine measured?
It is measured in CPH (Components Per Hour). For example:
Low - speed machines: 3,000 - 10,000 CPH (for small - batch production)
Medium - speed machines: 10,000 - 30,000 CPH (such as the Yamaha YG100)
High - speed machines: 30,000 - 60,000+ CPH (such as the YG200L)
High-resolution CL cameras
0.3mm fine-pitch nozzles
Note: Older units may need upgrades.
4
What is the smallest component a pick and place machine can mount?
It depends on the precision (unit: mm/μm):
Regular precision: ±0.05mm (for mounting 0402 and 0603 components)
High precision: ±0.025mm (for mounting 01005 and 0201 miniature components)
,
500
)
🔧
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
(
�
�
�
�
:
1,500)🔧Feederrecalibration(cost:200/unit)
🔧 Lubricate linear guides (DIY possible)
5
Is it worth buying a second - hand pick and place machine?
It is suitable for enterprises with limited budgets, but the following points should be noted:
Advantages: Low price (30% - 50% of a new machine) and quick return on investment.
Risks: Need to check for wear (rails, mounting heads), software compatibility, and after - sales service.
YSU (Yamaha Software Unit) version
Feeder/head calibration licenses
Tip: Request a demo run before payment.
